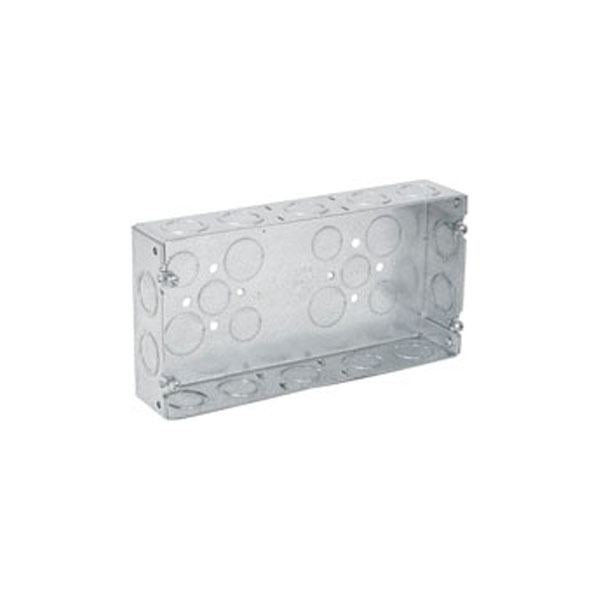

Gang Box; 4 Gang; 2-1/2 In.; 4 Conc. 3/4 &1

Mfr: RACO BY HUBBELL

UPC: 05016900943

Catalog #: 943

Call for Availability

Gang boxes save time in installation, no need to gang boxes together.
Have 19.05mm and 25.4mm concentric KO's for use with a wide variety of wiring methods.
Bottom KO pattern, 88.9mm and 69.8mm at either end of box.
Accepts two styles of covers, flat and 19.05mm raised device cover.
Use low voltage partitions #947 or #949.

SPECIFICATIONS

Overview

Gang boxes save time in installation, no need to gang boxes together.
Have 19.05mm and 25.4mm concentric KO's for use with a wide variety of wiring methods.
Bottom KO pattern, 88.9mm and 69.8mm at either end of box.
Accepts two styles of covers, flat and 19.05mm raised device cover.
Use low voltage partitions #947 or #949.

Number of Gangs

4-Gang

Depth

2-1/2 In.

Knockouts, Sides

4 Conc. 3/4 &1

Knockouts, End

(4) 3/4, 4 Conc. 3/4 &1

Knockouts, Bottoms

(6) 1/2, (4) 3/4

Type

Gang Box

Material

Steel

Dimensions

4-1/2 H x 10-7/16 W x 2-1/2 D In.

Volume

110 Cu. In.

Weight

2.213 Lbs.

Approvals
